Cable Ladder

Cable Trays
Code	Width(mm)	Height(mm)	Thickness(mm)	Length(mm)
CT5025	50	25	1.2	2500
CT5025	50	25	1.6	2500
CT5025	50	25	2	2500
CT5030	50	30	1.2	2500
CT5030	50	30	1.6	2500
CT5030	50	30	2	2500
CT5050	50	50	1.2	2500
CT5050	50	50	1.6	2500
CT5050	50	50	2	2500
CT7525	75	25	1.2	2500
CT7525	75	25	1.6	2500
CT7525	75	25	2	2500
CT7530	75	30	1.2	2500
CT7530	75	30	1.6	2500
CT7530	75	30	2	2500
CT7550	75	50	1.2	2500
CT7550	75	50	1.6	2500
CT7550	75	50	2	2500
CT10025	100	25	1.2	2500
CT10025	100	25	1.6	2500
CT10025	100	25	2	2500
CT10050	100	50	1.2	2500
CT10050	100	50	1.6	2500
CT10050	100	50	2	2500
CT15025	150	25	1.6	2500
CT15025	150	25	2	2500
CT15050	150	50	1.6	2500
CT15050	150	50	2	2500
CT20025	200	25	1.6	2500
CT20025	200	25	2	2500
CT20050	200	50	1.6	2500
CT20050	200	50	2	2500
CT30050	300	50	1.6	2500
CT30050	300	50	2	2500
CT30050	300	50	2.5	2500
CT300100	300	100	1.6	2500
CT300100	300	100	2	2500
CT300100	300	100	2.5	2500
CT40050	400	50	1.6	2500
CT40050	400	50	2	2500
CT40050	400	50	2.5	2500
CT400100	400	100	1.6	2500
CT400100	400	100	2	2500
CT400100	400	100	2.5	2500
CT50050	500	50	1.6	2500
CT50050	500	50	2	2500
CT50050	500	50	2.5	2500
CT500100	500	100	1.6	2500
CT500100	500	100	2	2500
CT500100	500	100	2.5	2500
CT60050	600	50	1.6	2500
CT60050	600	50	2	2500
CT60050	600	50	2.5	2500
CT600100	600	100	1.6	2500
CT600100	600	100	2	2500
CT600100	600	100	2.5	2500
CT80050	800	50	2	2500
CT800100	800	100	2.5	2500

Cable Ladders
Code	Width (mm)	Height (mm)	Thickness (mm)	Length (mm)
CL15050	150	50	1.6	2500
CL15050	150	50	2	2500
CL15050	150	50	2.5	2500
CL15075	150	75	1.6	2500
CL15075	150	75	2	2500
CL15075	150	75	2.5	2500
CL150100	150	100	1.6	2500
CL150100	150	100	2	2500
CL150100	150	100	2.5	2500
CL20050	200	50	1.6	2500
CL20050	200	50	2	2500
CL20050	200	50	2.5	2500
CL20075	200	75	1.6	2500
CL20075	200	75	2	2500
CL20075	200	75	2.5	2500
CL200100	200	100	1.6	2500
CL200100	200	100	2	2500
CL200100	200	100	2.5	2500
CL30050	300	50	2	2500
CL30050	300	50	2.5	2500
CL30075	300	75	2	2500
CL30075	300	75	2.5	2500
CL300100	300	100	2	2500
CL300100	300	100	2.5	2500
CL40050	400	50	2	2500
CL40050	400	50	2.5	2500
CL40075	400	75	2	2500
CL40075	400	75	2.5	2500
CL400100	400	100	2	2500
CL400100	400	100	2.5	2500
CL50050	500	50	2	2500
CL50050	500	50	2.5	2500
CL50075	500	75	2	2500
CL50075	500	75	2.5	2500
CL500100	500	100	2	2500
CL500100	500	100	2.5	2500
CL60050	600	50	2	2500
CL60050	600	50	2.5	2500
CL60075	600	75	2	2500
CL60075	600	75	2.5	2500
CL600100/125	600	100/125	2	2500
CL600100/125	600	100/125	2.5	2500
CL80050	800	50	2	2500
CL80050	800	50	2.5	2500
CL80075	800	75	2	2500
CL80075	800	75	2.5	2500
CL800100/125	800	100/125	2	2500
CL800100/125	800	100/125	2.5	2500
CL100050	1000	50	2.5	2500
CL100050	1000	50	3	2500
CL100075	1000	75	2.5	2500
CL100075	1000	75	3	2500
CL1000100/125	1000	100/125	2.5	2500
CL1000100/125	1000	100/125	3	2500
CL120050	1200	50	2.5	2500
CL120050	1200	50	3	2500
CL120075	1200	75	2.5	2500
CL120075	1200	75	3	2500
CL1200100/150	1200	100/150	2.5	2500
CL1200100/150	1200	100/150	3	2500

90 Bend
Width (mm)	Height (mm)	Thickness (mm)
50	25	1.2
50	25	1.6
50	25	2
50	30	1.2
50	30	1.6
50	30	2
50	50	1.2
50	50	1.6
50	50	2
75	25	1.2
75	25	1.6
75	25	2
75	30	1.2
75	30	1.6
75	30	2
75	50	1.2
75	50	1.6
75	50	2
100	25	1.2
100	25	1.6
100	25	2
100	50	1.2
100	50	1.6
100	50	2
150	25	1.6
150	25	2
150	50	1.6
150	50	2
200	25	1.6
200	25	2
200	50	1.6
200	50	2
300	50	1.6
300	50	2
300	50	2.5
300	100	1.6
300	100	2
300	100	2.5
400	50	1.6
400	50	2
400	50	2.5
400	100	1.6
400	100	2
400	100	2.5
500	50	1.6
500	50	2
500	50	2.5
500	100	1.6
500	100	2
500	100	2.5
600	50	1.6
600	50	2
600	50	2.5
600	100	1.6
600	100	2
600	100	2.5
800	50	2
800	100	2.5

45 Bend
Width (mm)	Height (mm)	Thickness (mm)
50	25	1.2
50	25	1.6
50	25	2
50	30	1.2
50	30	1.6
50	30	2
50	50	1.2
50	50	1.6
50	50	2
75	25	1.2
75	25	1.6
75	25	2
75	30	1.2
75	30	1.6
75	30	2
75	50	1.2
75	50	1.6
75	50	2
100	25	1.2
100	25	1.6
100	25	2
100	50	1.2
100	50	1.6
100	50	2
150	25	1.6
150	25	2
150	50	1.6
150	50	2
200	25	1.6
200	25	2
200	50	1.6
200	50	2
300	50	1.6
300	50	2
300	50	2.5
300	100	1.6
300	100	2
300	100	2.5
400	50	1.6
400	50	2
400	50	2.5
400	100	1.6
400	100	2
400	100	2.5
500	50	1.6
500	50	2
500	50	2.5
500	100	1.6
500	100	2
500	100	2.5
600	50	1.6
600	50	2
600	50	2.5
600	100	1.6
600	100	2
600	100	2.5
800	50	2
800	100	2.5

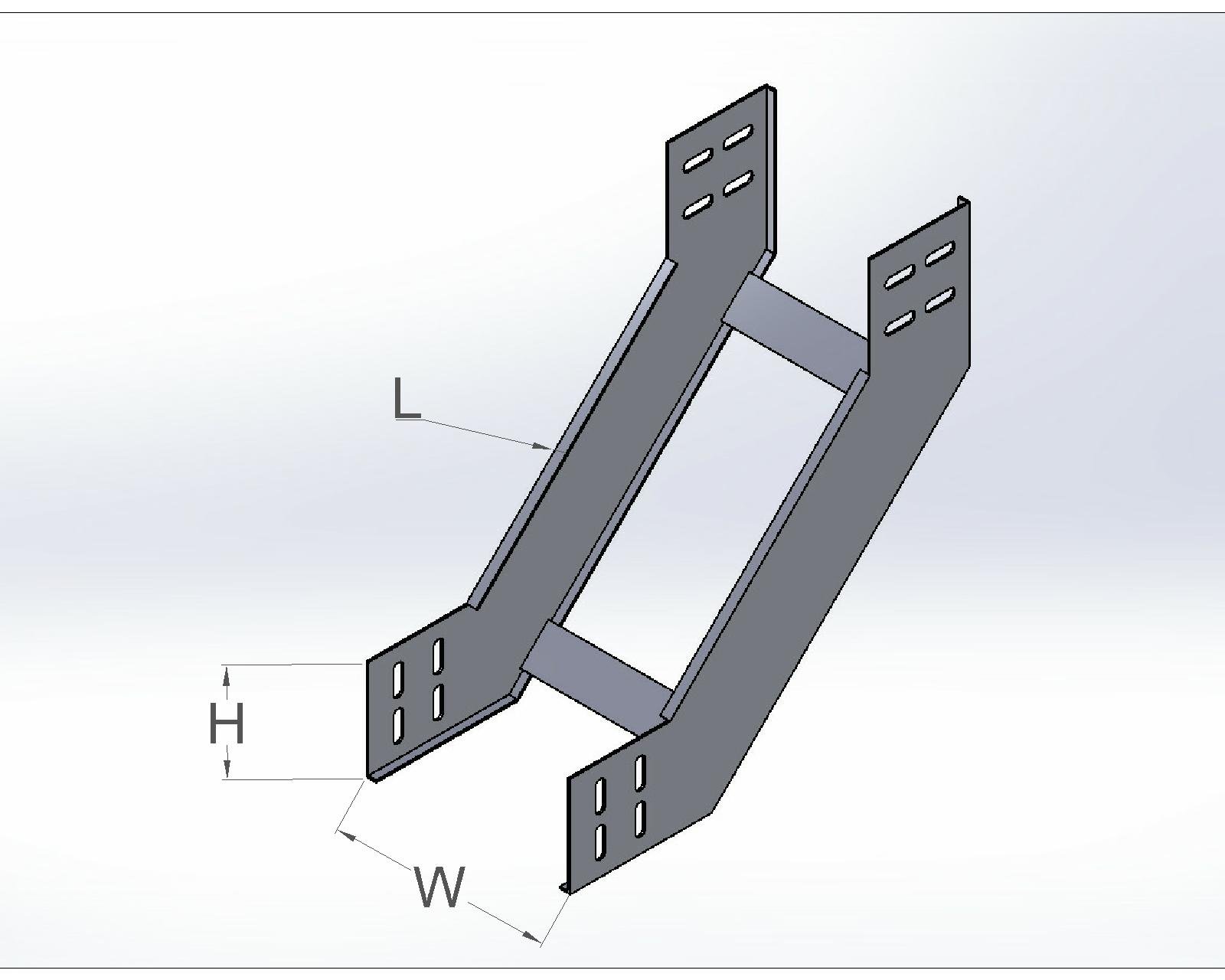

INTERNAL RISER
Width (mm)	Height (mm)	Thickness (mm)
50	25	1.2
50	25	1.6
50	25	2
50	30	1.2
50	30	1.6
50	30	2
50	50	1.2
50	50	1.6
50	50	2
75	25	1.2
75	25	1.6
75	25	2
75	30	1.2
75	30	1.6
75	30	2
75	50	1.2
75	50	1.6
75	50	2
100	25	1.2
100	25	1.6
100	25	2
100	50	1.2
100	50	1.6
100	50	2
150	25	1.6
150	25	2
150	50	1.6
150	50	2
200	25	1.6
200	25	2
200	50	1.6
200	50	2
300	50	1.6
300	50	2
300	50	2.5
300	100	1.6
300	100	2
300	100	2.5
400	50	1.6
400	50	2
400	50	2.5
400	100	1.6
400	100	2
400	100	2.5
500	50	1.6
500	50	2
500	50	2.5
500	100	1.6
500	100	2
500	100	2.5
600	50	1.6
600	50	2
600	50	2.5
600	100	1.6
600	100	2
600	100	2.5
800	50	2
800	100	2.5

EXTERNAL RISER
Width (mm)	Height (mm)	Thickness(mm)
50	25	1.2
50	25	1.6
50	25	2
50	30	1.2
50	30	1.6
50	30	2
50	50	1.2
50	50	1.6
50	50	2
75	25	1.2
75	25	1.6
75	25	2
75	30	1.2
75	30	1.6
75	30	2
75	50	1.2
75	50	1.6
75	50	2
100	25	1.2
100	25	1.6
100	25	2
100	50	1.2
100	50	1.6
100	50	2
150	25	1.6
150	25	2
150	50	1.6
150	50	2
200	25	1.6
200	25	2
200	50	1.6
200	50	2
300	50	1.6
300	50	2
300	50	2.5
300	100	1.6
300	100	2
300	100	2.5
400	50	1.6
400	50	2
400	50	2.5
400	100	1.6
400	100	2
400	100	2.5
500	50	1.6
500	50	2
500	50	2.5
500	100	1.6
500	100	2
500	100	2.5
600	50	1.6
600	50	2
600	50	2.5
600	100	1.6
600	100	2
600	100	2.5
800	50	2
800	100	2.5

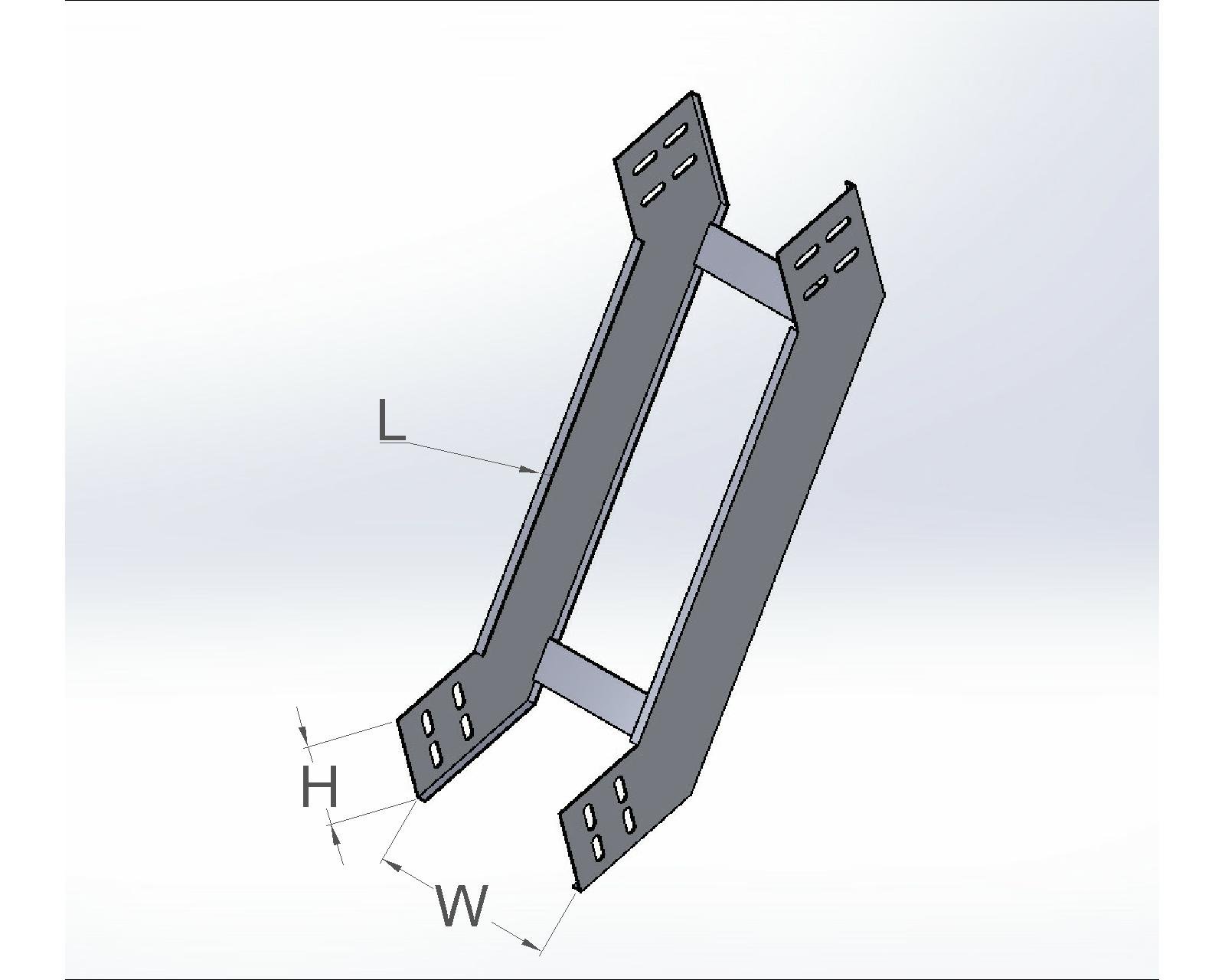

45 INTERNAL RISER
Width (mm)	Height (mm)	Thickness (mm)
50	25	1.2
50	25	1.6
50	25	2
50	30	1.2
50	30	1.6
50	30	2
50	50	1.2
50	50	1.6
50	50	2
75	25	1.2
75	25	1.6
75	25	2
75	30	1.2
75	30	1.6
75	30	2
75	50	1.2
75	50	1.6
75	50	2
100	25	1.2
100	25	1.6
100	25	2
100	50	1.2
100	50	1.6
100	50	2
150	25	1.6
150	25	2
150	50	1.6
150	50	2
200	25	1.6
200	25	2
200	50	1.6
200	50	2
300	50	1.6
300	50	2
300	50	2.5
300	100	1.6
300	100	2
300	100	2.5
400	50	1.6
400	50	2
400	50	2.5
400	100	1.6
400	100	2
400	100	2.5
500	50	1.6
500	50	2
500	50	2.5
500	100	1.6
500	100	2
500	100	2.5
600	50	1.6
600	50	2
600	50	2.5
600	100	1.6
600	100	2
600	100	2.5
800	50	2
800	100	2.5

EXTERNAL RISER
Width (mm)	Height (mm)	Thickness (mm)
50	25	1.2
50	25	1.6
50	25	2
50	30	1.2
50	30	1.6
50	30	2
50	50	1.2
50	50	1.6
50	50	2
75	25	1.2
75	25	1.6
75	25	2
75	30	1.2
75	30	1.6
75	30	2
75	50	1.2
75	50	1.6
75	50	2
100	25	1.2
100	25	1.6
100	25	2
100	50	1.2
100	50	1.6
100	50	2
150	25	1.6
150	25	2
150	50	1.6
150	50	2
200	25	1.6
200	25	2
200	50	1.6
200	50	2
300	50	1.6
300	50	2
300	50	2.5
300	100	1.6
300	100	2
300	100	2.5
400	50	1.6
400	50	2
400	50	2.5
400	100	1.6
400	100	2
400	100	2.5
500	50	1.6
500	50	2
500	50	2.5
500	100	1.6
500	100	2
500	100	2.5
600	50	1.6
600	50	2
600	50	2.5
600	100	1.6
600	100	2
600	100	2.5
800	50	2
800	100	2.5

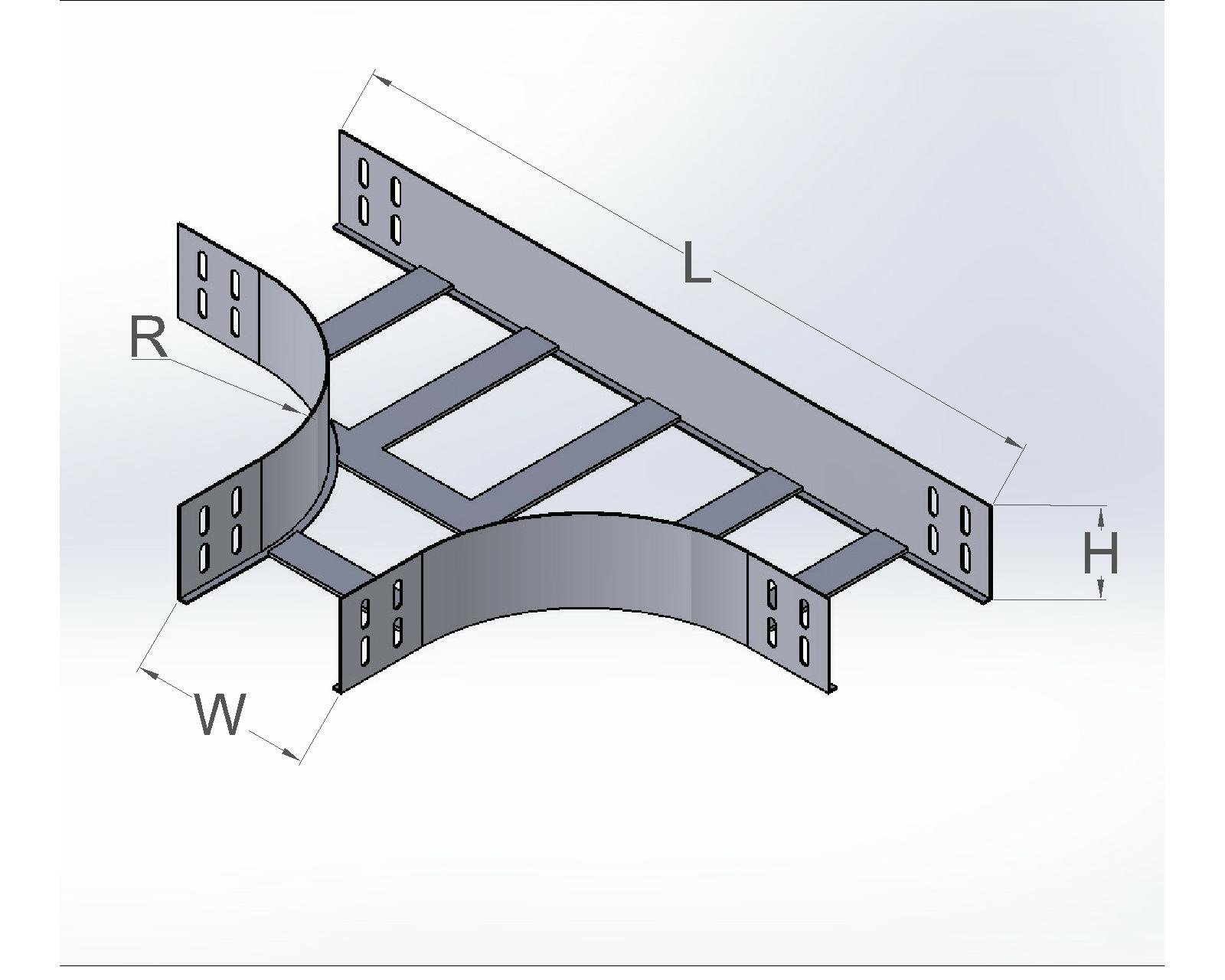

EQUAL TEE
Width (mm)	Height (mm)	Thickness (mm)
50	25	1.2
50	25	1.6
50	25	2
50	30	1.2
50	30	1.6
50	30	2
50	50	1.2
50	50	1.6
50	50	2
75	25	1.2
75	25	1.6
75	25	2
75	30	1.2
75	30	1.6
75	30	2
75	50	1.2
75	50	1.6
75	50	2
100	25	1.2
100	25	1.6
100	25	2
100	50	1.2
100	50	1.6
100	50	2
150	25	1.6
150	25	2
150	50	1.6
150	50	2
200	25	1.6
200	25	2
200	50	1.6
200	50	2
300	50	1.6
300	50	2
300	50	2.5
300	100	1.6
300	100	2
300	100	2.5
400	50	1.6
400	50	2
400	50	2.5
400	100	1.6
400	100	2
400	100	2.5
500	50	1.6
500	50	2
500	50	2.5
500	100	1.6
500	100	2
500	100	2.5
600	50	1.6
600	50	2
600	50	2.5
600	100	1.6
600	100	2
600	100	2.5
800	50	2
800	100	2.5

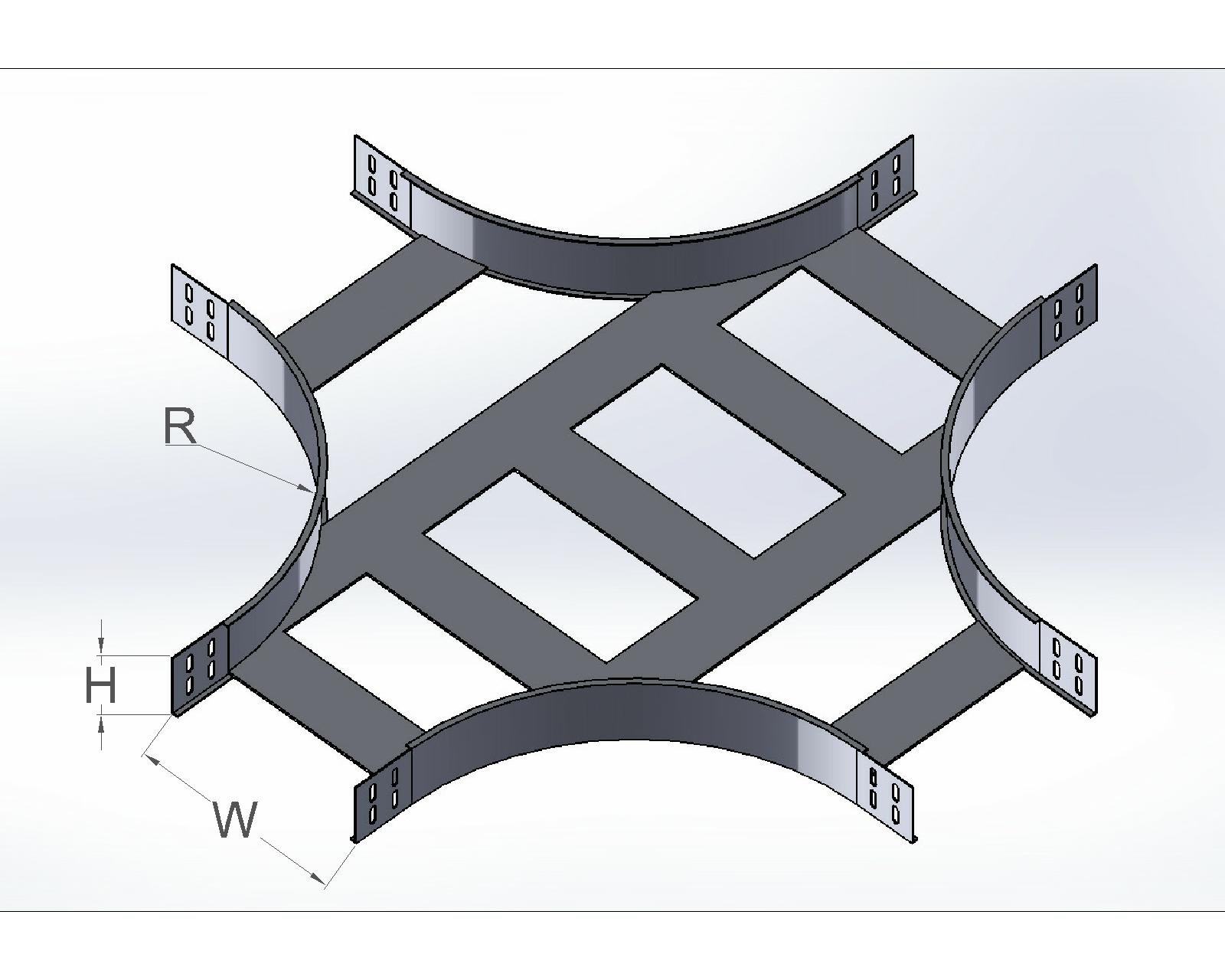

EQUAL CROSS
Width (mm)	Height (mm)	Thickness (mm)
50	25	1.2
50	25	1.6
50	25	2
50	30	1.2
50	30	1.6
50	30	2
50	50	1.2
50	50	1.6
50	50	2
75	25	1.2
75	25	1.6
75	25	2
75	30	1.2
75	30	1.6
75	30	2
75	50	1.2
75	50	1.6
75	50	2
100	25	1.2
100	25	1.6
100	25	2
100	50	1.2
100	50	1.6
100	50	2
150	25	1.6
150	25	2
150	50	1.6
150	50	2
200	25	1.6
200	25	2
200	50	1.6
200	50	2
300	50	1.6
300	50	2
300	50	2.5
300	100	1.6
300	100	2
300	100	2.5
400	50	1.6
400	50	2
400	50	2.5
400	100	1.6
400	100	2
400	100	2.5
500	50	1.6
500	50	2
500	50	2.5
500	100	1.6
500	100	2
500	100	2.5
600	50	1.6
600	50	2
600	50	2.5
600	100	1.6
600	100	2
600	100	2.5
800	50	2
800	100	2.5

CENTER REDUCER

Width1 (mm)	Width2 (mm)	Thickness (mm)
50	75	1.2
50	75	1.6
50	75	2
75	100	1.2
75	100	1.6
75	100	2
100	150	1.2
100	150	1.6
100	150	2
150	200	1.2
150	200	1.6
150	200	2
200	300	1.2
200	300	1.6
200	300	2
300	400/500	1.2
300	400/500	1.6
300	400/500	2
400	500/600	1.2
400	500/600	1.6
400	500/600	2
500	600/800	1.2
500	600/800	1.6
500	600/800	2
600	800	1.2
600	800	1.6
600	800	2
800	1000	1.2
800	1000	1.6
800	1000	2

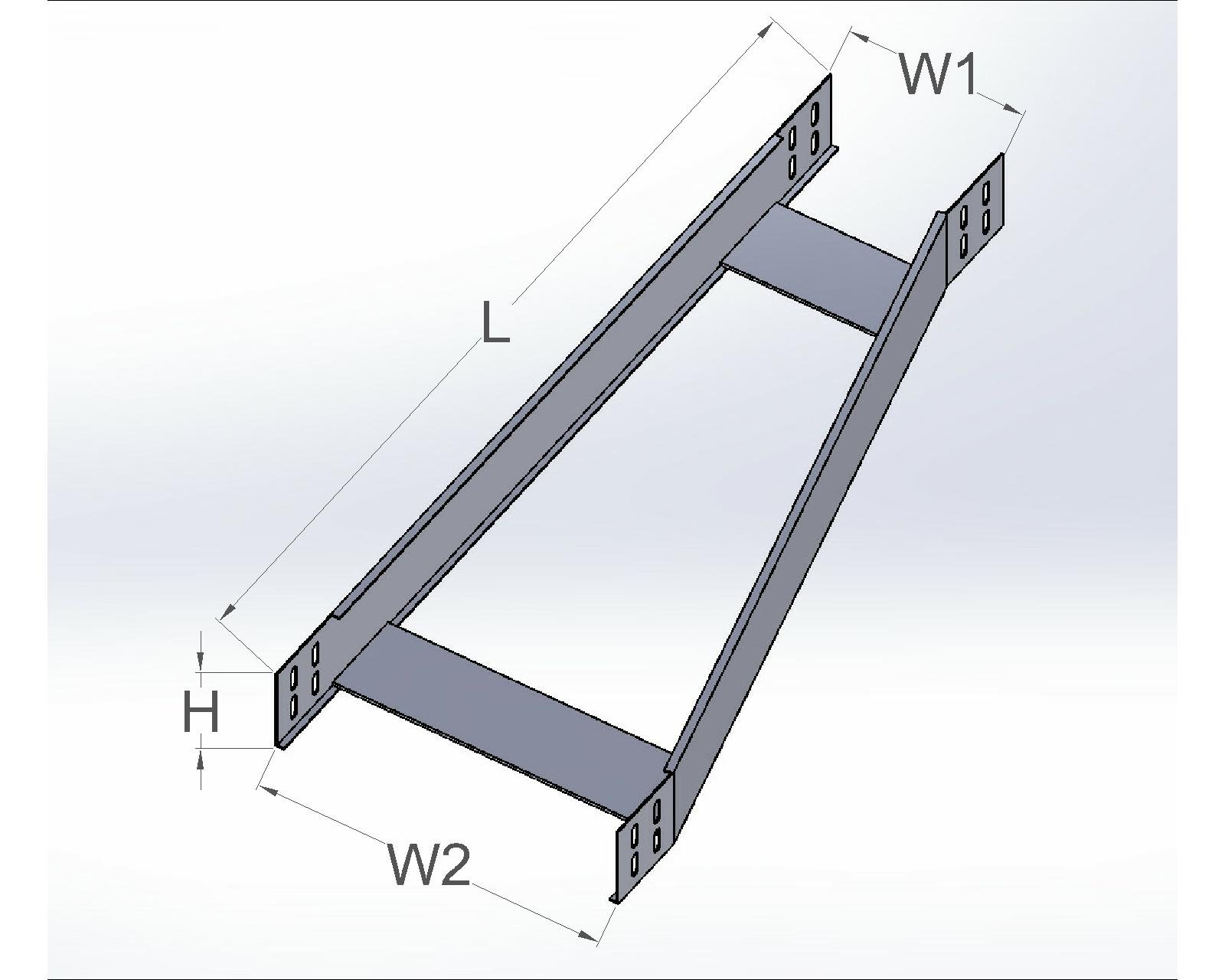

LEFT SIDE REDUCER

Width1 (mm)	Width2 (mm)	Thickness (mm)
50	75	1.2
50	75	1.6
50	75	2
75	100	1.2
75	100	1.6
75	100	2
100	150	1.2
100	150	1.6
100	150	2
150	200	1.2
150	200	1.6
150	200	2
200	300	1.2
200	300	1.6
200	300	2
300	400/500	1.2
300	400/500	1.6
300	400/500	2
400	500/600	1.2
400	500/600	1.6
400	500/600	2
500	600/800	1.2
500	600/800	1.6
500	600/800	2
600	800	1.2
600	800	1.6
600	800	2
800	1000	1.2
800	1000	1.6
800	1000	2

RIGHT SIDE REDUCER

Width1 (mm)	Width2 (mm)	Thickness (mm)
50	75	1.2
50	75	1.6
50	75	2
75	100	1.2
75	100	1.6
75	100	2
100	150	1.2
100	150	1.6
100	150	2
150	200	1.2
150	200	1.6
150	200	2
200	300	1.2
200	300	1.6
200	300	2
300	400/500	1.2
300	400/500	1.6
300	400/500	2
400	500/600	1.2
400	500/600	1.6
400	500/600	2
500	600/800	1.2
500	600/800	1.6
500	600/800	2
600	800	1.2
600	800	1.6
600	800	2
800	1000	1.2
800	1000	1.6
800	1000	2

ACCESSORIES

	C1 CHENNEL

	C2 CHENNEL

	SQUARE WASHER

	TWO/THREE HOLE WASHER


	CHANNEL NOT WITH SPRING

SOLAR PV STRUCTURE

We manufature, complete range of support structure for solar ceffs installation. We offer wide range of products & services for solar structure for with thickness ranges from 1 mm to 6 mm. Our Production is equipped with complete 100% automatic roll farming machine with in line punching ,slotting & cutting.Galvanisation of solar mounts structure is done as per customers requested from 120 GSM to 350 GSM.

Cable Ladder

Cable Trays

Cable Ladders

90 Bend

45 Bend

INTERNAL RISER

EXTERNAL RISER

45 INTERNAL RISER

EXTERNAL RISER

EQUAL TEE

EQUAL CROSS

CENTER REDUCER

LEFT SIDE REDUCER

RIGHT SIDE REDUCER

ACCESSORIES

SOLAR PV STRUCTURE

address

contact us

Quick Links

Cable Trays

INDUSTRIES
